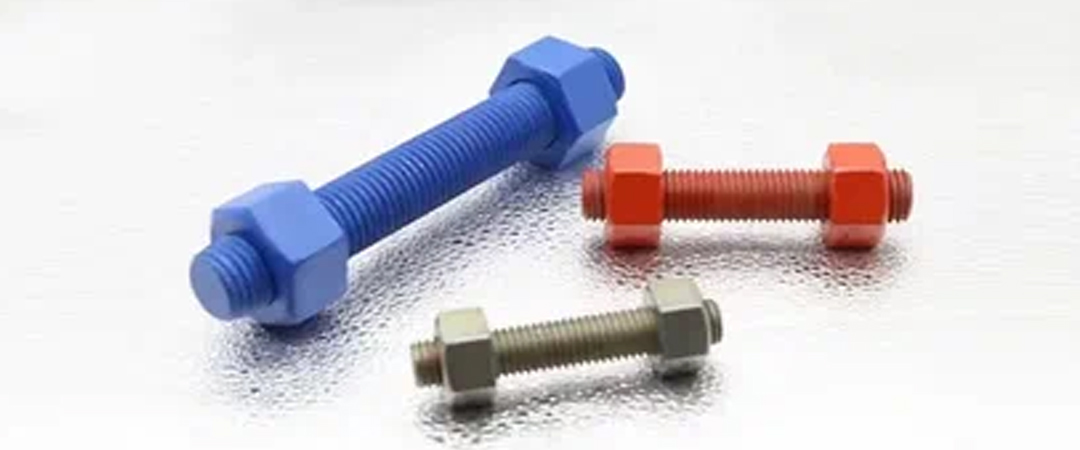

The ASTM A193 Stainless Steel Grade B8T Stud Bolt is a type of fastener that is made from stainless steel. It is specifically designed and manufactured to meet the standards set by the American Society for Testing and Materials (ASTM). This grade of stud bolt is commonly used in various industries due to its unique features, applications, and ease of machining.
Features of ASTM A193 Stainless Steel Grade B8T Stud Bolt:
High tensile strength: The ASTM A193 Stainless Steel Grade B8T Stud Bolt has a minimum tensile strength of 125,000 PSI, making it suitable for heavy-duty applications.
Corrosion Resistance: This stud bolt is made from stainless steel, which contains chromium and nickel. These elements give it exceptional resistance against corrosion caused by exposure to water, chemicals, and other harsh environments.
Temperature resistance: The ASTM A193 Stainless Steel Grade B8T Stud Bolt is able to withstand high temperatures without losing its strength, making it suitable for use in extreme temperature conditions.
Easy machinability: Due to its chemical composition and metallurgical structure, this stud bolt is easy to machine, allowing for faster and more efficient production.
Applications of ASTM A193 Stainless Steel Grade B8T Stud Bolt:
The ASTM A193 Stainless Steel Grade B8T Stud Bolt is commonly used in various industries, including:
Petrochemical: This type of stud bolt is widely used in the petrochemical industry due to its high strength and corrosion resistance, making it suitable for use in pipelines, valves, and other equipment.
Power generation: The ASTM A193 Stainless Steel Grade B8T Stud Bolt is also commonly used in power plants due to its ability to withstand high temperatures and corrosive environments.
Marine: Its corrosion resistance makes this stud bolt ideal for use in marine applications such as shipbuilding, offshore oil rigs, and other marine structures.
Automotive: The ASTM A193 Stainless Steel Grade B8T Stud Bolt is used in the automotive industry for various applications, including engine assembly and suspension systems.
Specifications | ASTM A193 / ASME SA193 |
Size | M02 to M160 |
Length | 3 to 200 mm |
Dimensions | DIN 975/976, ASME B18.2.1, B18.31.3, B16.5 |
DIN Standard | B.S. DIN 931, DIN 933, DIN 912, DIN 934, DIN 6923, DIN 603, DIN 7981, DIN 970, DIN916, DIN 7982, DIN 7985, DIN 913 |
UTS | NPT, UNS, UNF, UNC, UNEF, NPTF |
ISO | ISO 4033, ISO 4032, ISO 7380, ISO 4017, JIS standards |
Threads | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
Type | Cold Forged, Hot Forged, Bar Stock Machined, Bar Stock Milling |
Machining of ASTM A193 Stainless Steel Grade B8T Stud Bolt:
One of the key benefits of using the ASTM A193 Stainless Steel Grade B8T Stud Bolt is its ease of machining. This stud bolt can be easily machined using standard cutting tools and techniques, making it a cost-effective option for many industries.
However, it is important to note that the machining process must be carried out carefully to ensure the integrity and strength of the stud bolt are not compromised. It is recommended to use lubricants during machining to prevent excessive heat buildup and minimize the risk of tool wear.
To preserve the high standards of our selection of industrial stud bolts, we have always adhered to a systematic quality management process.
Our staff of experts is vibrant and talented, and they have always been our largest supporters and contributors to our success. Our vision is to create a world of stud bolts.
Grade | C | Mn | Si | P | S | Ni | Cr | Mo |
B8T (AISI 321) | 0.08% max | 2.00% max | 1.00% max | 0.045% | 0.030% | 8.0 - 11.0% | 18.0 - 20.0% | - |
Grade | Size | Tensile ksi, min | Yield, ksi, min | Elong, %, min | RA % min |
B8T | All | 75 | 30 | 30 | 50 |
Hardness testing to ISO 6508-1
Nut proof load testing to ISO 898-2
Suitability for preloading to EN 14399-2
Calibrated gauges and tools
