DIN 934 Hex Nuts
Vision Alloys is a trusted supplier and stockist of DIN 934 hex nuts in India, offering a comprehensive range of sizes, materials, and finishes to meet diverse industrial requirements. These precision-engineered nuts conform to international standards, ensuring reliability and performance in various applications.
Our DIN 934 hex nuts are available in materials such as carbon steel, stainless steel, alloy steel, and phosphor bronze, among others. Each material is selected based on its suitability for specific environmental conditions, ensuring optimal performance and longevity. For instance, stainless steel hex nuts offer excellent corrosion resistance, making them ideal for marine and chemical industries.
DIN 934 Hex Nuts Manufacturers, Suppliers and Stainless Steel Hex Nut Dimensions Guide
We provide a wide range of sizes, from M3 to M100, catering to both standard and custom specifications. The nuts are available in different grades, including Grade A (for sizes up to M16) and Grade B (for sizes above M16), as per DIN 934 standards. This variety ensures that our clients can find the exact fit for their specific applications.
At Vision Alloys, we understand the importance of timely delivery and quality assurance. Our DIN 934 hex nuts undergo stringent quality control processes to meet international standards, ensuring they perform reliably under various mechanical stresses. We offer flexible packaging options, including boxes, bags, or crates, depending on the order size and destination, facilitating both bulk and custom orders.
Whether you're involved in construction, automotive, marine, or general engineering projects, Vision Alloys provides durable and high-quality DIN 934 hex nuts tailored to your needs. Our commitment to quality, timely delivery, and customer satisfaction makes us a preferred choice for industries across India and overseas.

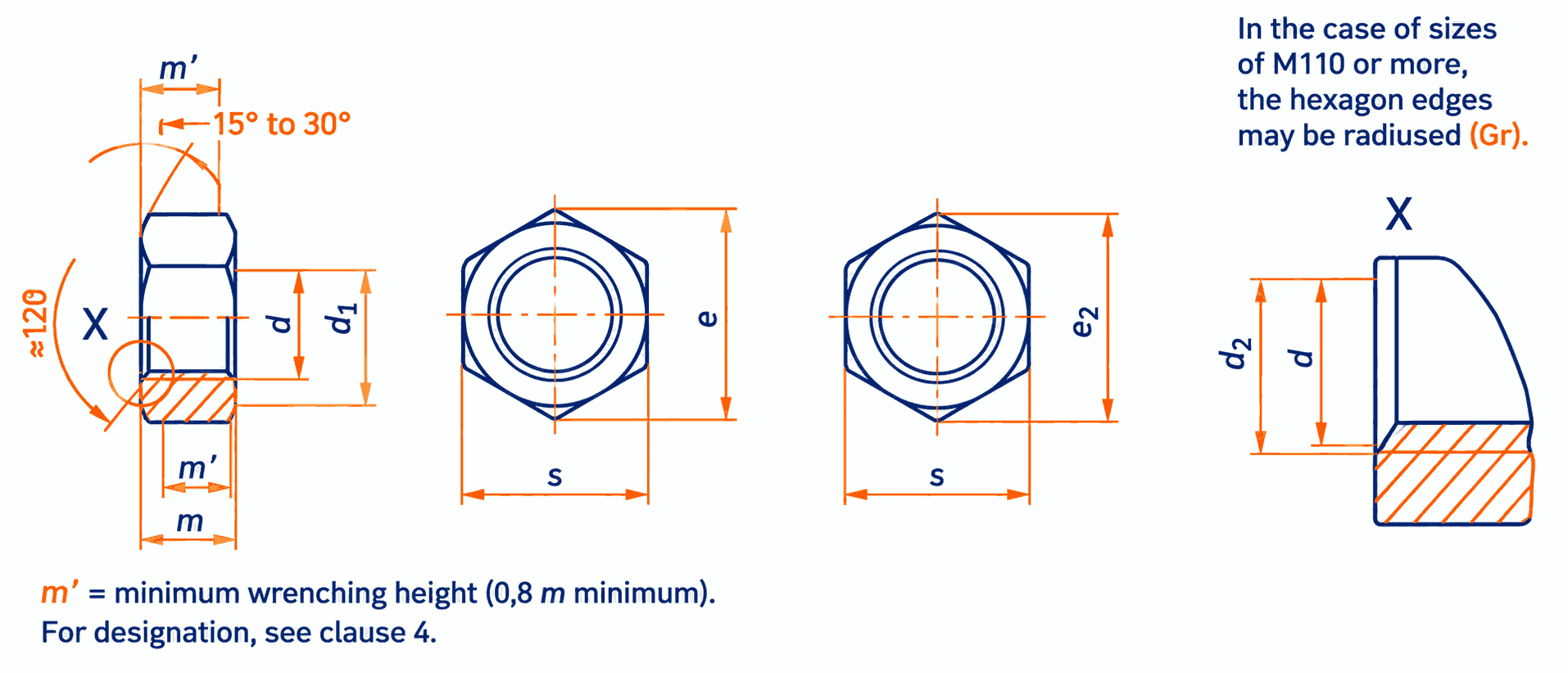

DIN 934 Hex Nut Dimensions (Coarse Threads)
| d | P | da | dw | s | e min. | m | m1 min. | |||
|---|---|---|---|---|---|---|---|---|---|---|
| min | max | min | max | min | max | |||||
| M1 | 0.25 | 1 | 1.15 | 2 | 2.4 | 2.5 | 2.71 | 0.55 | 0.8 | 0.44 |
| M1.2 | 0.25 | 1.2 | 1.4 | 2.1 | 2.9 | 3 | 3.28 | 0.75 | 1 | 0.6 |
| M1.4 | 0.3 | 1.4 | 1.6 | 2.1 | 2.9 | 3 | 3.28 | 0.95 | 1.2 | 0.76 |
| M1.6 | 0.35 | 1.6 | 1.84 | 2.4 | 3.02 | 3.2 | 3.41 | 1.05 | 1.3 | 0.84 |
| M2 | 0.4 | 2 | 2.3 | 3.2 | 3.82 | 4 | 4.32 | 1.35 | 1.6 | 1.08 |
| M2.5 | 0.45 | 2.5 | 2.9 | 4.1 | 4.82 | 5 | 5.45 | 1.75 | 2 | 1.4 |
| M2.6 | 0.45 | 2.6 | 3 | 4.1 | 4.82 | 5 | 5.45 | 1.75 | 2 | 1.4 |
| M3 | 0.5 | 3 | 3.45 | 4.5 | 5.32 | 5.5 | 6.01 | 2.15 | 2.4 | 1.72 |
| M3.5 | 0.6 | 3.5 | 4 | 5 | 5.82 | 6 | 6.58 | 2.55 | 2.8 | 2.04 |
| M4 | 0.7 | 4 | 4.6 | 5.8 | 6.78 | 7 | 7.66 | 2.9 | 3.2 | 2.32 |
| M5 | 0.8 | 5 | 5.75 | 6.8 | 7.78 | 8 | 8.79 | 3.7 | 4 | 2.96 |
| M6 | 1 | 6 | 6.75 | 8.8 | 9.78 | 10 | 11.05 | 4.7 | 5 | 3.76 |
| M7 | 1 | 7 | 7.75 | 9.5 | 10.73 | 11 | 12.12 | 5.2 | 5.5 | 4.16 |
| M8 | 1.25 | 8 | 8.75 | 11.3 | 12.73 | 13 | 14.38 | 6.14 | 6.5 | 4.91 |
| M10 | 1.5 | 10 | 10.8 | 15.3 | 16.73 | 17 | 18.9 | 7.64 | 8 | 6.11 |
| M12 | 1.75 | 12 | 13 | 17.2 | 18.67 | 19 | 21.1 | 9.64 | 10 | 7.71 |
| M14 | 2 | 14 | 15.1 | 20.2 | 21.67 | 22 | 24.49 | 10.3 | 11 | 8.24 |
| M16 | 2 | 16 | 17.3 | 22.2 | 23.67 | 24 | 26.75 | 12.3 | 13 | 9.84 |
| M18 | 2.5 | 18 | 19.5 | 25.3 | 26.16 | 27 | 29.56 | 14.3 | 15 | 11.44 |
| M20 | 2.5 | 20 | 21.6 | 28.2 | 29.16 | 30 | 32.95 | 14.9 | 16 | 11.92 |
| M22 | 2.5 | 22 | 23.7 | 29.5 | 31 | 32 | 35.03 | 16.9 | 18 | 13.52 |
| M24 | 3 | 24 | 25.9 | 33.2 | 35 | 36 | 39.55 | 17.7 | 19 | 14.16 |
| M27 | 3 | 27 | 29.1 | 38 | 40 | 41 | 42.2 | 20.7 | 22 | 16.56 |
| M30 | 3.5 | 30 | 32.4 | 42.7 | 45 | 46 | 50.85 | 22.7 | 24 | 18.16 |
| M33 | 3.5 | 33 | 35.6 | 46.6 | 49 | 50 | 55.37 | 24.7 | 26 | 19.76 |
| M36 | 4 | 36 | 38.9 | 51.1 | 53.8 | 55 | 60.79 | 27.4 | 29 | 21.92 |
| M39 | 4 | 39 | 42.1 | 55.9 | 58.8 | 60 | 66.44 | 29.4 | 31 | 23.52 |
| M42 | 4.5 | 42 | 45.4 | 60.6 | 63.1 | 65 | 71.3 | 32.4 | 34 | 25.9 |
| M45 | 4.5 | 45 | 48.6 | 64.7 | 68.1 | 70 | 76.95 | 34.4 | 36 | 27.5 |
| M48 | 5 | 48 | 51.8 | 69.4 | 73.1 | 75 | 82.6 | 36.4 | 38 | 29.1 |
| M52 | 5 | 52 | 56.2 | 74.2 | 78.1 | 80 | 88.25 | 40.4 | 42 | 32.3 |
| M56 | 5.5 | 56 | 60.5 | 78.7 | 82.8 | 85 | 93.56 | 43.4 | 45 | 34.7 |
| M60 | 5.5 | 60 | 64.8 | 83.4 | 87.8 | 90 | 99.21 | 46.4 | 48 | 37.1 |
| M64 | 6 | 64 | 69.1 | 88.2 | 92.8 | 95 | 104.86 | 49.1 | 51 | 39.3 |
| M68 | 6 | 68 | 73.4 | 92.9 | 97.8 | 100 | 110.51 | 52.1 | 54 | 41.7 |
| M72 | 72 | 77.8 | 97.7 | 102.8 | 105 | 116.16 | 56.1 | 58 | 44.9 | |
| M76 | 76 | 82.1 | 102.4 | 107.8 | 110 | 121.81 | 59.1 | 61 | 47.3 | |
| M80 | 80 | 86.4 | 107.2 | 112.8 | 115 | 127.46 | 62.1 | 64 | 49.7 | |
| M85 | 85 | 91.8 | 111.9 | 117.8 | 120 | 133.11 | 66.1 | 68 | 52.9 | |
| M90 | 90 | 97.2 | 121.1 | 127.5 | 130 | 144.08 | 70.1 | 72 | 56.1 | |
| M100 | 100 | 108 | 135.4 | 142.5 | 145 | 161.02 | 78.1 | 80 | 62.5 | |
| M110 | 110 | 119 | 144.9 | 152.5 | 155 | 172.32 | 85.8 | 88 | 68.6 | |
| M125 | 125 | 135 | 168.6 | 177.5 | 180 | 200.57 | 97.8 | 100 | 78.2 | |
| M140 | 140 | 151 | 185.6 | 195.4 | 200 | 220.8 | 109.8 | 112 | 87.8 | |
| M160 | 160 | 171 | 214.1 | 225.4 | 230 | 254.70 | 125.5 | 128 | 100 | |
| Sizes in brackets should be avoided if possible. P = pitch of coarse thread as specified in DIN 13 Part 12. 2) As a deviation from ISO 4759 Part 1, tolerance zone h12 instead of h13 shall apply for widths across flats up to and including 4 mm. Minimum dimensions corresponding to tolerance zone h14 instead of h13 shall be permissible for M5 to M16 hot dip galvanized nuts. |
||||||||||
DIN 934 Hex Nut Weight Chart
| Size | Weight (kg / 1000 pcs) |
|---|---|
| M1 | 0.030 |
| M1.2 | 0.054 |
| M1.4 | 0.063 |
| M1.6 | 0.076 |
| M2 | 0.142 |
| M2.5 | 0.280 |
| M3 | 0.384 |
| M3.5 | 0.514 |
| M4 | 0.81 |
| M5 | 1.23 |
| M6 | 2.50 |
| M7 | 3.12 |
| M8 | 5.20 |
| M10 | 11.6 |
| M12 | 17.3 |
| M14 | 25.0 |
| M16 | 33.3 |
| M18 | 49.4 |
| M20 | 64.4 |
| M22 | 79 |
| M24 | 110 |
| M27 | 165 |
| M30 | 223 |
| M33 | 288 |
| M36 | 393 |
| M39 | 502 |
| M42 | 652 |
| M45 | 800 |
| M48 | 977 |
| M52 | 1220 |
| M56 | 1420 |
| M60 | 1690 |
| M64 | 1980 |
| M68 | 2300 |
| M72 | 2670 |
| M76 | 3040 |
| M80 | 3440 |
| M85 | 3930 |
| M90 | 4930 |
| M100 | 6820 |
| M110 | 8200 |
| M125 | 13000 |
| M140 | 17500 |
| M160 | 26500 |
