Stainless Steel 304 Stud Bolts, also known as 1.4301 stud bolts, are fasteners made from a specific type of stainless steel alloy called AISI 304 or simply 304 stainless steel. This alloy is one of the most commonly used stainless steels and is known for its excellent corrosion resistance and versatility.


ASTM A193 SS 304 Double End Threaded Stud, Stainless Steel 304 Stud, Stainless Steel 304 Stud Bolt Price List, SS 304 Stud Bolt, Stainless Steel 304 Threaded Rod, 304 SS Stud Bolts, SS 304 Stud Bolts Manufacturers in India.

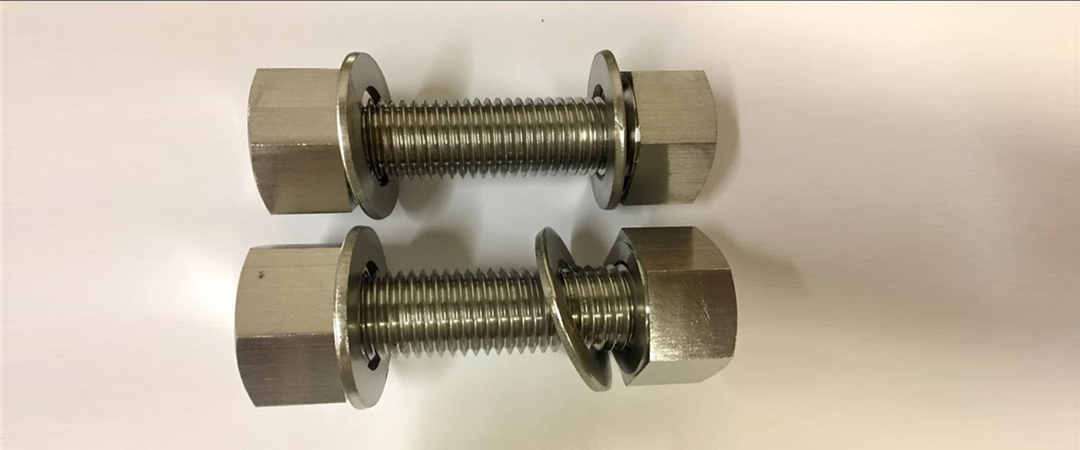

Stainless Steel 304 Stud Bolts
  • UNS

    S30400

  • WNR

    1.4301

  • ASTM / ASME

    ASTM A 193 / SA 193

  • SHARE

304 Stainless Steel Tie Bars, 304 SS Half Threaded Stud Bolts, M16 Stainless Steel 304 Stud Bolts, 1.4301 Stud Bolts, UNS S30400 Stud Bolt, SS 304 Tie Rods, 304 SS High Tensile Stud Bolts, SS 304 Double End Threaded Stud.


Here are some key features and information about Stainless Steel 304 Stud Bolts (1.4301):


Stainless Steel Composition: Stainless Steel 304 is an austenitic stainless steel alloy containing approximately 18-20% chromium and 8-10.5% nickel. It also contains small amounts of other elements like manganese, silicon, and carbon. This composition provides the alloy with its corrosion resistance and strength.


Corrosion Resistance: Stainless Steel 304 is highly resistant to corrosion, making it suitable for use in various environments, including those exposed to moisture, chemicals, and even mildly acidic or alkaline conditions. It can withstand exposure to freshwater, atmospheric conditions, and many organic and inorganic chemicals.


Stud Bolt Design: Stud bolts are threaded rods with threads on both ends. One end is typically threaded to engage with a nut, while the other end may have a plain or chamfered design for insertion into a tapped hole or other fastening applications.


Versatility: Stainless Steel 304 Stud Bolts are versatile fasteners used in a wide range of applications across industries such as construction, manufacturing, petrochemical, food processing, and more. They can be found in structural connections, equipment assembly, and machinery installation.


SS 304 Tap End Stud Bolt, Stainless Steel 304 Tap Bolt, Stainless Steel 304 Fully Threaded Stud Bolts, ASME SA193 SS 304 Stud Bolts, Stainless Steel 304 Stud Bolts Manufacturers in India.


fevicon-logo SS 304 Stud Bolts Specification

SpecificationsASTM A 193 / ASME SA 193
Diameter1/4"-3" Matric:M3 to M72 in length 3000mm
StandardISO, ASTM, DIN, JIS, IS, GB, BS, and all International Standards
DIN StandardB.S. DIN 931, DIN 933, DIN 912, DIN 934, DIN 6923, DIN 603, DIN 7981, DIN 970, DIN916, DIN 7982, DIN 7985, DIN 913
UTSNPT, UNS, UNF, UNC, UNEF, NPTF
ISOISO 4033, ISO 4032, ISO 7380, ISO 4017, JIS standards
ThreadsMETRIC, BSW, UNC, UNF, BSF or as required

Strength and Temperature Resistance: While Stainless Steel 304 offers good mechanical properties and can handle a wide range of temperatures, it may not be suitable for high-temperature applications (above 800°C or 1472°F) due to potential sensitization issues.


Availability: Stainless Steel 304 Stud Bolts are readily available in various lengths, thread sizes, and configurations to suit different applications. They can be found in metric and imperial sizes.


Non-Magnetic: Stainless Steel 304 is generally non-magnetic in its annealed (heat-treated) condition. However, it can become partially magnetic after cold working or during certain manufacturing processes.


Weldability: Stainless Steel 304 is weldable using common welding methods such as TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas) welding, making it suitable for applications that require welding.


Quality Assurance

To preserve the high standards of our selection of industrial fasteners, we have always adhered to a systematic quality management process.

Team OF Experts

Our staff of experts is vibrant and talented, and they have always been our largest supporters and contributors to our success. Our vision is to create a world of fasteners.

fevicon-logo Equivalent Grades Of Stainless Steel 304 Stud Bolts

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10

fevicon-logo Chemical Composition of Stainless Steel 304 Stud Bolts

Grade C Mn Si P S Cr Mo Ni N
SS 304 0.08 max 2 max 0.75 max 0.045 max 0.030 max 18 – 20 8 – 11

fevicon-logo Mechanical Properties of SS 304 Stud Bolts

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Blog Icon

If would you like to inquire or place an order.
+91 22 6659 5948


fevicon-logo Types of Stainless Steel 304 Stud Bolts

Double Ended Threaded Studs

SS 304 Double Ended Threaded Studs

Tie Rods

SS 304 Tie Rods

Threaded Rod

SS 304 Threaded Rod

Tap End Stud Bolt

SS 304 Tap End Stud Bolt

Fully Threaded Stud Bolts

304 SS Fully Threaded Stud Bolts

Stud

304 SS Stud

Welding Stud

SS 304 Welding Stud

Partially Threaded Stud Bolt

SS 304 Partially Threaded Stud Bolt
