Stainless Steel 316L Stud Bolts (1.4404) are fasteners made from a specific grade of stainless steel known as 316L or 1.4404. These stud bolts are commonly used in various industries and applications where corrosion resistance and durability are critical. Here are some key features and information about Stainless Steel 316L Stud Bolts:


ASTM A193 SS 316L Double End Threaded Stud, Stainless Steel 316L Stud, Stainless Steel 316L Threaded Rod, 316L SS Stud Bolts, Stainless Steel 316L Stud Bolt Price List, SS 316L Stud Bolt, SS 316L Stud Bolts Manufacturers in India.

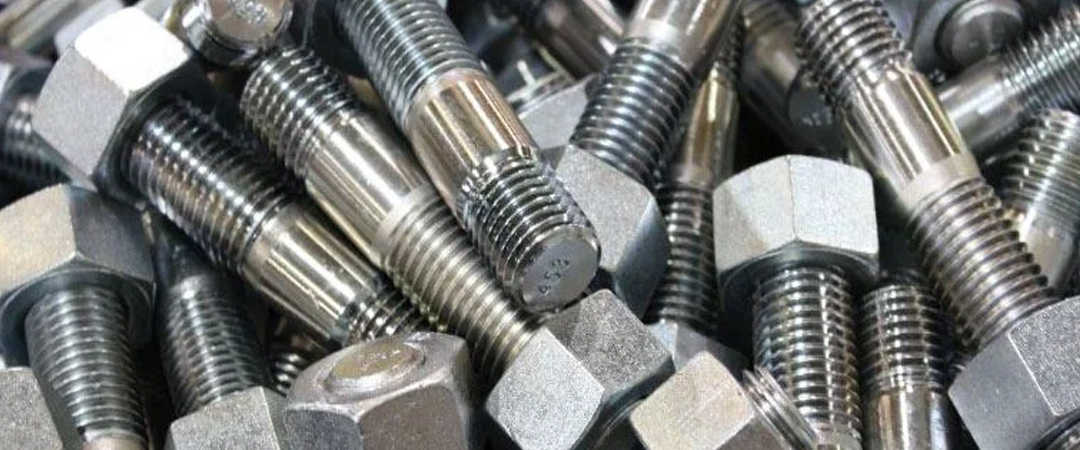

Stainless Steel 316L Stud Bolts
  • UNS

    S31603

  • WNR

    1.4404

  • ASTM / ASME

    ASTM A 193 / SA 193

  • SHARE

316L Stainless Steel Tie Bars, SS 316L Tie Rods, 1.4404 Stud Bolts, UNS S31603 Stud Bolt, M16 Stainless Steel 316L Stud Bolts, 316L SS Half Threaded Stud Bolts, 316L SS High Tensile Stud Bolts, SS 316L Double End Threaded Stud.


Material Composition:


Stainless Steel 316L (1.4404) is an austenitic stainless steel alloy.

Its chemical composition includes:

16-18% Chromium (Cr): Provides corrosion resistance.

10-14% Nickel (Ni): Enhances resistance to corrosion and adds strength.

2-3% Molybdenum (Mo): Increases resistance to pitting and crevice corrosion.

Small amounts of other elements like carbon, silicon, sulfur, and phosphorus.

The "L" in 316L stands for "Low Carbon," indicating that this alloy has a reduced carbon content compared to 316 stainless steel, which further improves corrosion resistance.

Features:


Stud bolts are threaded rods with threads on both ends designed to be fastened with nuts.

Stainless Steel 316L provides excellent resistance to corrosion, making these stud bolts suitable for use in corrosive environments, including marine, chemical, and industrial applications.

They are available in various lengths, diameters, and thread configurations to suit different requirements.

Threaded ends may be partially or fully threaded, depending on the specific application.

Corrosion Resistance:


Stainless Steel 316L (1.4404) is highly corrosion-resistant and can withstand exposure to a wide range of corrosive substances, including saltwater, acids, and chemicals.

It is particularly well-suited for applications in marine environments, offshore drilling, chemical processing, and pharmaceutical industries.

Applications:


Stainless Steel 316L Stud Bolts find applications in various industries, including:

Oil and gas: Used in pipeline construction and offshore platforms.

Petrochemical: Suitable for equipment and structural components.

Pharmaceutical and food processing: Ideal for sanitary environments.

Marine: Resistant to saltwater corrosion.

Construction: Used in structural applications where corrosion resistance is required.

Machining:


Stainless Steel 316L can be machined, but it is generally more challenging to work with than carbon steel due to its hardness.

Cutting, drilling, and tapping operations may require the use of appropriate cutting tools and coolants.

Welding is possible but should be performed with care to prevent heat-affected zone corrosion. Proper welding techniques and filler materials compatible with 316L stainless steel should be used.


ASME SA193 SS 316L Stud Bolts, Stainless Steel 316L Tap Bolt, Stainless Steel 316L Fully Threaded Stud Bolts, SS 316L Tap End Stud Bolt, Stainless Steel 316L Stud Bolts Manufacturers in India.


fevicon-logo SS 316L Stud Bolts Specification

SpecificationsASTM A 193 / ASME SA 193
Diameter1/4"-3" Matric:M3 to M72 in length 3000mm
StandardISO, ASTM, DIN, JIS, IS, GB, BS, and all International Standards
DIN StandardB.S. DIN 931, DIN 933, DIN 912, DIN 934, DIN 6923, DIN 603, DIN 7981, DIN 970, DIN916, DIN 7982, DIN 7985, DIN 913
UTSNPT, UNS, UNF, UNC, UNEF, NPTF
ISOISO 4033, ISO 4032, ISO 7380, ISO 4017, JIS standards
ThreadsMETRIC, BSW, UNC, UNF, BSF or as required

Safety Considerations:


When selecting and installing Stainless Steel 316L Stud Bolts, it is important to consider load-bearing requirements and adhere to safety standards and guidelines.

Regular inspection and maintenance are essential to ensure the integrity of the fasteners and the structures they are used in.


Quality Assurance

To preserve the high standards of our selection of industrial stud bolts, we have always adhered to a systematic quality management process.

Team OF Experts

Our staff of experts is vibrant and talented, and they have always been our largest supporters and contributors to our success. Our vision is to create a world of stud bolts.

fevicon-logo Equivalent Grades Of Stainless Steel 316L Stud Bolts

Grade

UNS
No

Old British

Euronorm

Swedish
SS

Japanese
JIS

BS

En

No

Name

316L

S31603

316S11

1.4404

X2CrNiMo17-12-2

2348

SUS 316L


fevicon-logo Chemical Composition of Stainless Steel 316L Stud Bolts

Grade



C

Mn

Si

P

S

Cr

Mo

Ni

N

316L

Min

16.0

2.00

10.0

Max

0.03

2.0

0.75

0.045

0.03

18.0

3.00

14.0

0.10


fevicon-logo Mechanical Properties of SS 316L Stud Bolts

Grade

Tensile Str
(MPa) min

Yield Str
0.2% Proof
(MPa) min

Elong
(% in 50mm) min

Hardness

Rockwell B (HR B) max

Brinell (HB) max

316L

485

170

40

95

217


Blog Icon

If would you like to inquire or place an order.
+91 22 6659 5948


fevicon-logo Types of Stainless Steel 316L Stud Bolts

Double Ended Threaded Studs

SS 316L Double Ended Threaded Studs

Tie Rods

SS 316L Tie Rods

Threaded Rod

SS 316L Threaded Rod

Tap End Stud Bolt

SS 316L Tap End Stud Bolt

Fully Threaded Stud Bolts

316L SS Fully Threaded Stud Bolts

Stud

316L SS Stud

Welding Stud

SS 316L Welding Stud

Partially Threaded Stud Bolt

SS 316L Partially Threaded Stud Bolt


Fasteners Manufacturers In India

  • Hardness testing to ISO 6508-1

  • Nut proof load testing to ISO 898-2

  • Suitability for preloading to EN 14399-2

  • Calibrated gauges and tools


fevicon-logo Other Types Of Stainless Steel 316L Stud Bolts

UNS S31603 Stud Bolts SS 316L Tie Rod Manufacturer in Mumbai
Stainless Steel 316L Full Thread Stud Bolt SS 316L Stud
1.4404 Stud Bolts Stainless Steel 316L Weld Studs
SS 316L Stud Bolts Suppliers in India 316L Stainless Steel Stud Bolts Manufacturer in India
SS 316L Continuous Threaded Stud Bolts SS 316L B8 Double End Threaded Stud
Stainless Steel 316L Stud Bolts Supplier in India SS 316L Stud Bolts Price List
316L SS Stud Bolts Manufacturer in India Stainless Steel 316L Double Ended Threaded Stud
316L SS Threaded Rod Manufacturer in Mumbai SS 316L Tap End Stud Bolt
ASTM A193 316L Stainless Steel High Tensile Stud Bolts M16 Stainless Steel 316L Flange Stud Bolt
316L SS Double Ended Stud Manufacturers in Mumbai Stainless Steel 316L Partially Threaded Stud Bolt
316L Stainless Steel Stud Bolts Stainless Steel 316L Welding Stud Suppliers in Mumbai
SS 316L Dowel Studs Supplier in Mumbai Stainless Steel 316L Stud Bolt Manufacturer

fevicon-logo Stainless Steel 316L Stud Bolts Application Industries

Aerospace Industry
Nuclear Industry
MEdical Industry
Marine Industry
Mining Industry
Automotive Industry
Construction Industry
Manufacturing Industry
