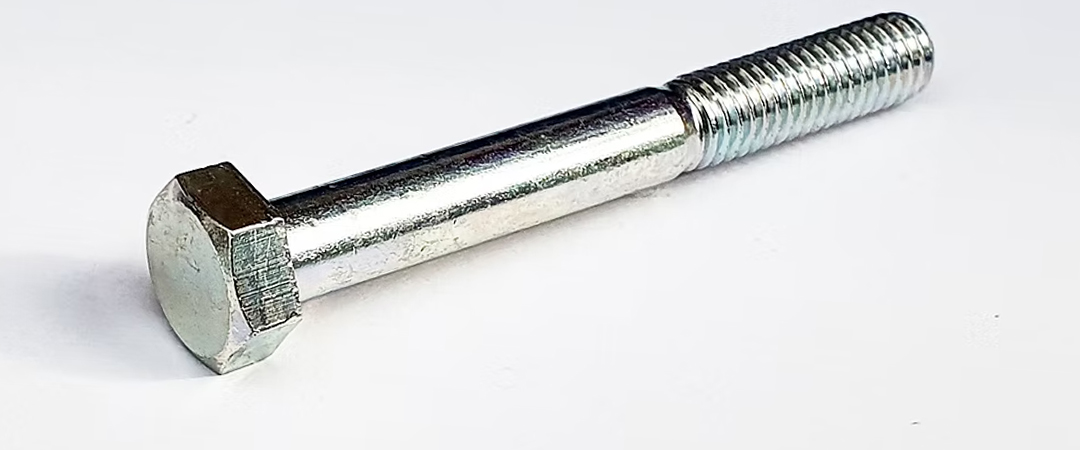

Super Duplex Steel Zeron 100 Hex Bolts
Zeron 100 is a highly corrosion-resistant super duplex stainless steel alloy. Super duplex stainless steels like Zeron 100 are known for their excellent combination of strength and resistance to corrosion, particularly in aggressive environments. Hex bolts made from Zeron 100 offer several benefits and applications:
Super Duplex Stainless Steel Zeron 100 Hexagon Bolt, Super Duplex Steel Zeron 100 Hex Bolts, Zeron 100 Hex Flange Bolt, Steel Zeron 100 Hex Bolts, Zeron 100 Hex Head Bolts, Super Duplex Zeron 100 Hex Bolts, Zeron 100 Hex Bolts Manufacturers in India.
-
UNS
S32760
-
WNR
1.4501
-
ASTM
ASTM A479 / SA479
-
SHARE
Features:
- Corrosion Resistance: Zeron 100 has exceptional resistance to a wide range of corrosive substances, including chloride environments, acids, and alkaline solutions. This makes it suitable for use in marine, offshore, and chemical processing applications.
- High Strength: Zeron 100 hex bolts have high tensile and yield strength, making them capable of withstanding heavy loads and ensuring the integrity of structures and equipment.
- Durability: This alloy is known for its durability and long service life, even in harsh conditions.
- Resistance to Stress Corrosion Cracking: Zeron 100 is less prone to stress corrosion cracking compared to many other stainless steels, making it ideal for critical applications.
- Resistance to Pitting and Crevice Corrosion: It provides excellent resistance to pitting and crevice corrosion, which is crucial in chloride-rich and aggressive environments.
Manufacturer Of SDSS Zeron 100 Heavy Hex Bolts, Super Duplex Steel Zeron 100 Heavy Hex Head Bolt, Super Duplex S32760 Hex Bolt Manufacturers, Zeron 100 Hex Bolts, Zeron 100 Hexagonal Bolt, Zeron 100 Hex Bolt Suppliers, Super Duplex Steel S32760 Hex Bolts Suppliers in Mumbai.
Specifications
of Zeron 100 Hex Bolts
| Standards | ASTM A479, ASME SA479 |
| Standard | DIN, ASTM, BS and all International Standards |
| Diameter | M3 to M100 up to 1000 MM |
| DIN Standard | B.S. DIN 931, DIN 933, DIN 912, DIN 934, DIN 6923, DIN 603, DIN 7981, DIN 970, DIN916, DIN 7982, DIN 7985, DIN 913 |
| UTS | NPT, UNS, UNF, UNC, UNEF, NPTF |
| ISO | ISO 4033, ISO 4032, ISO 7380, ISO 4017, JIS standards |
| Threads | METRIC, BSW, UNC, UNF, BSF or as required |
Applications:
- Oil and Gas Industry: Zeron 100 hex bolts are commonly used in offshore oil and gas platforms, subsea equipment, and pipelines where corrosion resistance and strength are essential.
- Marine Industry: Due to its resistance to saltwater corrosion, Zeron 100 hex bolts find applications in marine environments for various rigging and fastening needs.
- Chemical Processing: In chemical processing plants, where exposure to aggressive chemicals is common, Zeron 100 hex bolts are used to secure equipment and piping systems.
- Petrochemical Industry: These bolts are employed in various parts of petrochemical facilities for fastening and securing equipment.
- Desalination Plants: Zeron 100 is used in desalination plants where resistance to saltwater and corrosive chemicals is crucial.
- Power Generation: In power generation facilities, especially in coastal or chloride-rich environments, Zeron 100 hex bolts are used to secure equipment and structures.
- Mining: They are used in mining operations for hoisting, fastening, and securing heavy equipment and materials.
- Construction: In construction and infrastructure projects where corrosion resistance is needed, Zeron 100 hex bolts are used for various fastening applications.
Quality Assurance
To preserve the high standards of our selection of industrial Hex Bolt, we have always adhered to a systematic quality management process.
Team OF Experts
Our staff of experts is vibrant and talented, and they have always been our largest supporters and contributors to our success. Our vision is to create a world of Hex Bolt.
Equivalent Grades Of Super Duplex Steel Zeron 100 Hex Bolts
| Alloy | Common Name | Related Specification | ||
|---|---|---|---|---|
| Zeron 100 | Zeron 100 ® | 1.4501 | S32760 | F55 |
Chemical Composition of Zeron 100 Hex Bolts
| Element | Content (%) |
|---|---|
| Chromium, Cr | 24.0-26.0 |
| Nickel, Ni | 6.0-8.0 |
| Phosphorous, P | 0.03 Max |
| Carbon, C | 0.030 Max |
| Sulfur, S | 0.01 Max |
| Molybdenum, Mo | 3.0-4.0 |
| Manganese, Mn | 1.00 Max |
| Silicon, Si | 1.0 Max |
| Copper, Cu | 0.50-1.0 |
| Nitrogen, N | 0.2-0.3 |
| Iron, Fe | Balance |
Mechanical Properties of SDSS Zeron 100 Hex Bolt
| Grade | Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) |
Hardness Rockwell C (HR C) |
|---|---|---|---|---|
| ZERON-100 (UNS-S32760) | 750 | 550 | 25 | - |
Types of Super Duplex Steel Zeron 100 Hex Bolt
Zeron 100 Hex Bolt
Zeron 100 Heavy Hex Bolt
Super Duplex Zeron 100 Hex Tap Bolt
SDSS Zeron 100 Hex Flange Bolt
Zeron 100 Half Threaded Hex Bolt
Zeron 100 Fully Threaded Hex Bolt
Super Duplex Zeron 100 Hex Machine Bolt
Zeron 100 Hex Shoulder Bolt
