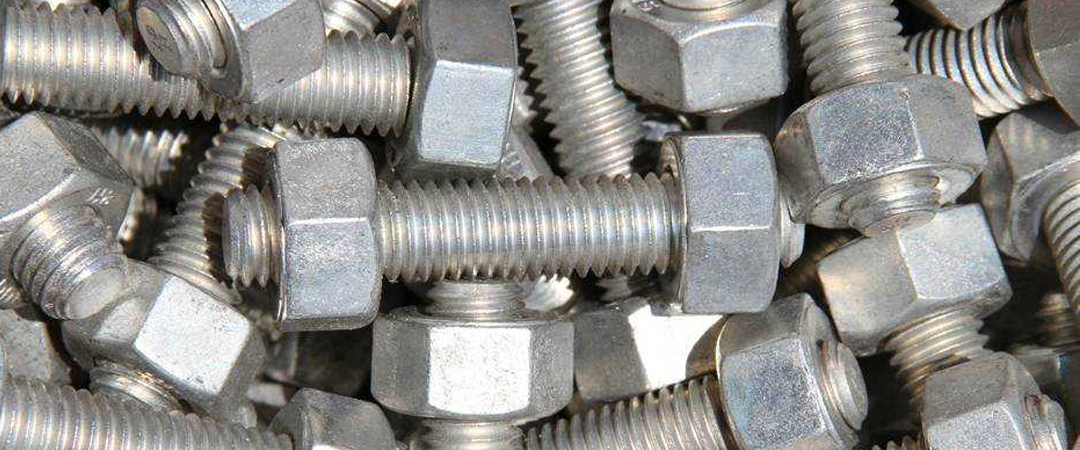

Stainless Steel A193 Grade B8 Stud Bolts
Stainless Steel A193 Grade B8 is a specific type of stainless steel alloy that is commonly used for stud bolts and other stud bolts. It has several features, applications, and notable corrosion resistance properties:
Stainless Steel B8 Stud Bolt Price List, Gr B8 SS Stud Bolts, Stainless Steel Grade B8 Threaded Rod, SS B8 Stud Bolt, A193 B8 Class 2 Stud Bolts, Stainless Steel B8 Stud, ASTM A193 SS B8 Double End Threaded Stud, SS Gr. B8 Stud Bolts Manufacturers in India.
-
-
ASTM / ASME
ASTM A193 / SA193
-
SHARE
B8 SS High Tensile Stud Bolts, SS Grade B8 Double End Threaded Stud, M16 Stainless Steel Gr B8 Stud Bolts, SS Gr.B8 Tie Rods, B8 Stainless Steel Tie Bars, ASME SA193 Class 1 Stud Bolts, Grade B8 SS Half Threaded Stud Bolts.
Features of Stainless Steel A193 Grade B8:
Stainless Steel Composition: A193 Grade B8 is typically made from Type 304 stainless steel, which contains 18-20% chromium and 8-10.5% nickel. This composition gives it excellent corrosion resistance properties.
Corrosion Resistance: One of the primary features of A193 Grade B8 is its exceptional resistance to corrosion. It is highly resistant to both atmospheric and chemical corrosion, making it suitable for use in various environments.
High Strength: A193 Grade B8 has good mechanical properties and high tensile strength, making it suitable for applications where high-strength fasteners are required.
Applications of Stainless Steel A193 Grade B8 Stud Bolts: Stainless Steel A193 Grade B8 stud bolts are widely used in various industries and applications, including:
Petrochemical and Chemical Industries: These stud bolts are commonly used in equipment and pipelines in the petrochemical and chemical industries due to their corrosion resistance and strength.
Food Processing: Stainless Steel A193 Grade B8 is often used in food processing equipment and machinery where hygiene and corrosion resistance are essential.
Power Generation: In power plants, these stud bolts are used in critical components such as turbines, boilers, and heat exchangers due to their ability to withstand high temperatures and corrosive environments.
Marine Applications: Stainless Steel A193 Grade B8 is suitable for marine applications because of its resistance to saltwater corrosion.
Construction: These stud bolts can be used in construction projects where corrosion resistance and strength are required.
SS B8 Tap End Stud Bolt, Stainless Steel Grade B8 Tap Bolt, ASME SA193 SS B8 Stud Bolts, Stainless Steel Gr.B8 Fully Threaded Stud Bolts, Stainless Steel B8 Stud Bolts Manufacturers in India.
SS ASTM A193 B8 Stud Bolts Specification
| Specifications | ASTM A193 / ASME SA193 |
| Diameter | 1/4"-3" Matric:M3 to M72 in length 3000mm |
| Dimensions | DIN 975/976, ASME B18.2.1, B18.31.3, B16.5 |
| DIN Standard | B.S. DIN 931, DIN 933, DIN 912, DIN 934, DIN 6923, DIN 603, DIN 7981, DIN 970, DIN916, DIN 7982, DIN 7985, DIN 913 |
| UTS | NPT, UNS, UNF, UNC, UNEF, NPTF |
| ISO | ISO 4033, ISO 4032, ISO 7380, ISO 4017, JIS standards |
| Threads | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Type | Cold Forged, Hot Forged, Bar Stock Machined, Bar Stock Milling |
Corrosion Resistance of Stainless Steel A193 Grade B8: The corrosion resistance of A193 Grade B8 is a key characteristic of this stainless steel grade. Its resistance to corrosion is attributed to the presence of chromium, which forms a passive oxide layer on the surface when exposed to oxygen. This oxide layer acts as a protective barrier, preventing further corrosion and rusting.
Quality Assurance
To preserve the high standards of our selection of industrial stud bolts, we have always adhered to a systematic quality management process.
Team OF Experts
Our staff of experts is vibrant and talented, and they have always been our largest supporters and contributors to our success. Our vision is to create a world of stud bolts.
Chemical Composition of Stainless Steel ASTM A193 B8 Stud Bolts
|
ASTM
|
A193
Grade B8 |
|
Percentage
|
%
|
|
C.
|
0.08 max.
|
|
Mn.
|
2.00 max.
|
|
Si.
|
1.00 max.
|
|
P.
|
0.045 max.
|
|
S.
|
0.030 max.
|
|
Cr.
|
18.00—20.00
|
|
Ni.
|
8.00—10.50
|
|
Mo.
|
—
|
|
V.
|
—
|
|
Ti.
|
—
|
|
Brinell Hardness
|
223 B.H.N.
max. |
|
Impact Value
|
Not
applicable |
Mechanical Properties of SS ASTM A193 B8 Stud Bolts
|
Grade
|
Size
|
Tensile ksi, min
|
Yield, ksi, min
|
Elong, %, min
|
RA % min
|
|
B8 Class 1
|
All
|
75
|
30
|
30
|
50
|
|
B8 Class 2
|
Up to 3/4
|
125
|
100
|
12
|
35
|
|
7/8 – 1
|
115
|
80
|
15
|
35
|
|
|
1-1/8 – 1-1/4
|
105
|
65
|
20
|
35
|
|
|
1-3/8 – 1-1/2
|
100
|
50
|
28
|
45
|
Types of Stainless Steel ASTM A193 Grade B8 Stud Bolts
SS Grade B8 Double Ended Threaded Studs
SS B8 Tie Rods
SS Gr.B8 Threaded Rod
SS ASTM A193 Grade B8 Tap End Stud Bolt
Grade B8 SS Fully Threaded Stud Bolts
B8 SS Stud
SS Gr.B8 Welding Stud
SS Grade B8 Partially Threaded Stud Bolt
