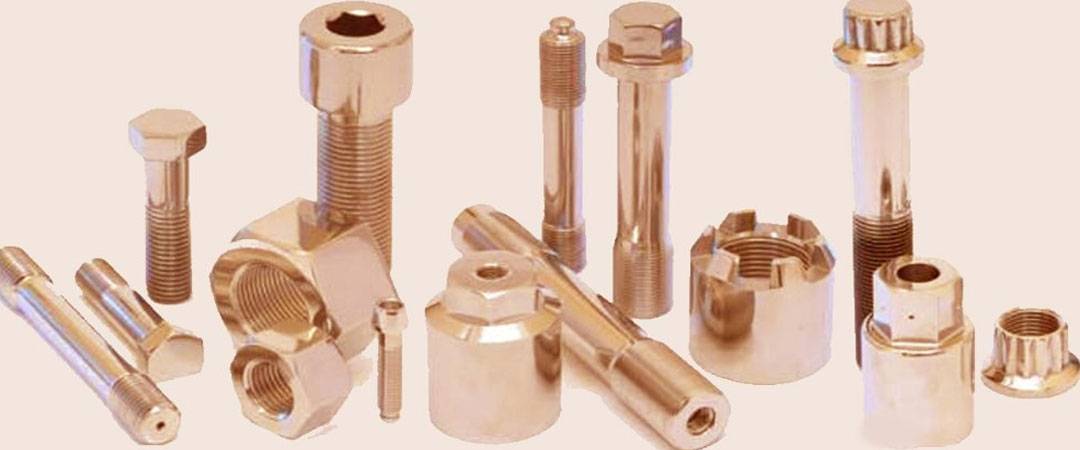

Cupro-Nickel 90/10 Fasteners are hardware components made from an alloy known as Copper-Nickel 90/10, also referred to as C70600. This alloy is a combination of 90% copper and 10% nickel, along with trace amounts of other elements such as iron and manganese. The composition of Cupro-Nickel 90/10 provides a unique balance of properties that make it ideal for various engineering applications.
One of the key features of Cupro-Nickel 90/10 Fasteners is their excellent resistance to seawater corrosion and biofouling. This alloy is widely used in marine environments, as it offers exceptional resistance to marine organisms and chloride-induced corrosion. Cupro-Nickel 90/10 Fasteners are resistant to crevice corrosion, stress corrosion cracking, and erosion, making them suitable for applications in shipbuilding, offshore structures, and desalination plants.
Another significant feature of Cupro-Nickel 90/10 Fasteners is their good mechanical properties. They possess moderate strength, high ductility, and excellent thermal conductivity. This combination of mechanical and thermal properties makes them suitable for applications involving heat exchangers, condensers, and other equipment in both marine and industrial environments.
Corroding resistance is one of the most outstanding qualities of Cupro-Nickel 90/10 Fasteners. In seawater, this alloy develops a protective oxide layer that enhances its resistance to corrosion, making it an ideal choice for various marine applications such as ship hulls, heat exchangers, and cooling systems.
Specifications | ASTM B151, ASME SB151 |
Standard | DIN, ASTM, BS and all International Standards |
Size | M3 to M90 |
Length | 10mm to 1000mm |
Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
Form | Hex, Threading, Square, Round as per Gauge Etc. |
Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc. |
Neck type | Hex, Square, Triangular, Oval & Knurled etc. |
Surface Coating | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing. |
Cupro-Nickel 90/10 Fasteners are extensively used in marine and naval construction due to their excellent resistance to seawater corrosion. They are employed in fastening critical components such as propellers, hulls, and other underwater equipment. Additionally, they are used in desalination plants, power generation facilities, and offshore oil and gas platforms. The high thermal conductivity of Cupro-Nickel 90/10 Fasteners makes them ideal for heat exchangers and condensers in both marine and industrial settings.
To preserve the high standards of our selection of industrial fasteners, we have always adhered to a systematic quality management process.
Our staff of experts is vibrant and talented, and they have always been our largest supporters and contributors to our success. Our vision is to create a world of fasteners.
STANDARD | WERKSTOFF NR. | UNS |
---|---|---|
Copper Nickel 90/10 | 2.0872 | C70600 |
Grade | Cu | Mn | Pb | Ni | Fe | Zn |
---|---|---|---|---|---|---|
Cu-Ni 90-10 | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
---|---|---|---|---|---|
Copper Nickel 90-10 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
Hardness testing to ISO 6508-1
Nut proof load testing to ISO 898-2
Suitability for preloading to EN 14399-2
Calibrated gauges and tools
